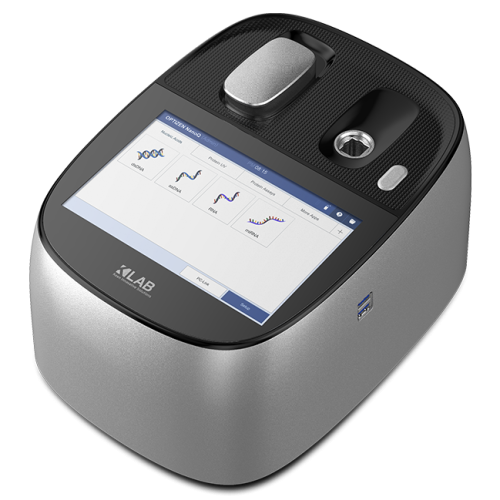

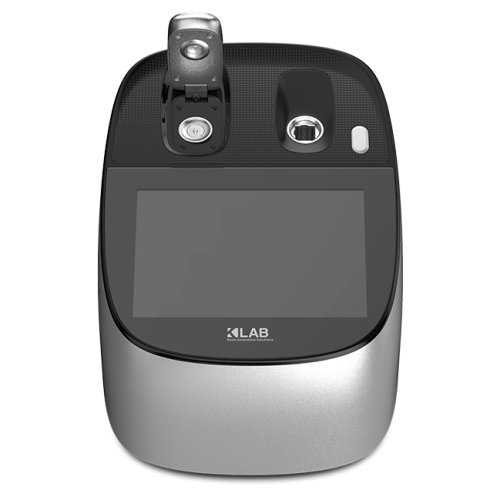

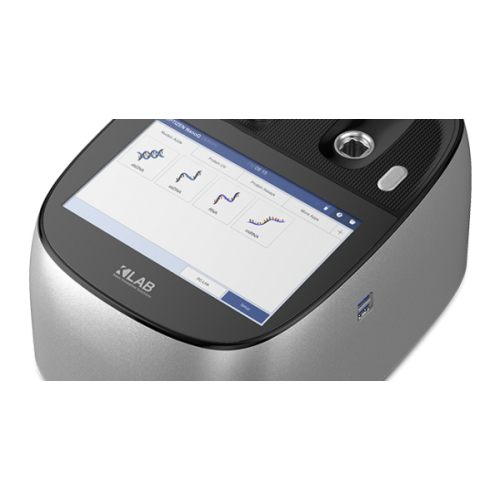

NanoQ Plus – Advanced Microvolume UV-Vis Spectrophotometer

Precision DNA, RNA & Protein Quantification in Seconds

The NanoQ Plus from K LAB is an advanced microvolume UV-Vis spectrophotometer designed for fast and accurate analysis of nucleic acids, proteins, and cell density measurements. Combining microvolume and cuvette measurement modes in one compact system, the NanoQ Plus delivers laboratory-grade performance with exceptional ease of use.

Key Features

Ultra-Low Sample Volume

Measure samples using as little as 1 µL, helping conserve valuable DNA, RNA, and protein samples.

Wide Wavelength Range

Covers 190–850 nm, enabling applications from nucleic acid quantification to protein analysis and OD600 measurements.

Fast Measurements

Get accurate results in under 8 seconds with no lamp warm-up required thanks to the Xenon flash lamp system.

Dual Measurement Modes

Supports both:

• Microvolume measurements
• Standard cuvette measurements

Ideal for a broad concentration range and flexible workflows.

Intuitive Touchscreen Interface

Features a responsive 7-inch HD touchscreen compatible with laboratory gloves for convenient operation.

Built for Modern Labs

• Android-based operating system
• 32 GB internal storage
• USB, Ethernet & RS-232 connectivity
• Data export support

Typical Applications

• DNA / RNA quantification
• Protein concentration analysis
• Purity assessment (A260/A280, A260/A230)
• OD600 bacterial culture measurements
• Cell counting
• Full-spectrum UV-Vis scanning

---

Technical Specifications

Specification	NanoQ Plus
Wavelength Range	190 – 850 nm
Minimum Sample Volume	1 µL
Detector	2048-pixel CMOS linear image sensor
Light Source	Xenon flash lamp
Spectral Resolution	1.0–1.5 nm
Measurement Time	< 8 seconds
Display	7" HD Touchscreen
Storage	32 GB Internal
Connectivity	USB, Ethernet, RS-232
Weight	Approx. 3.0 kg
